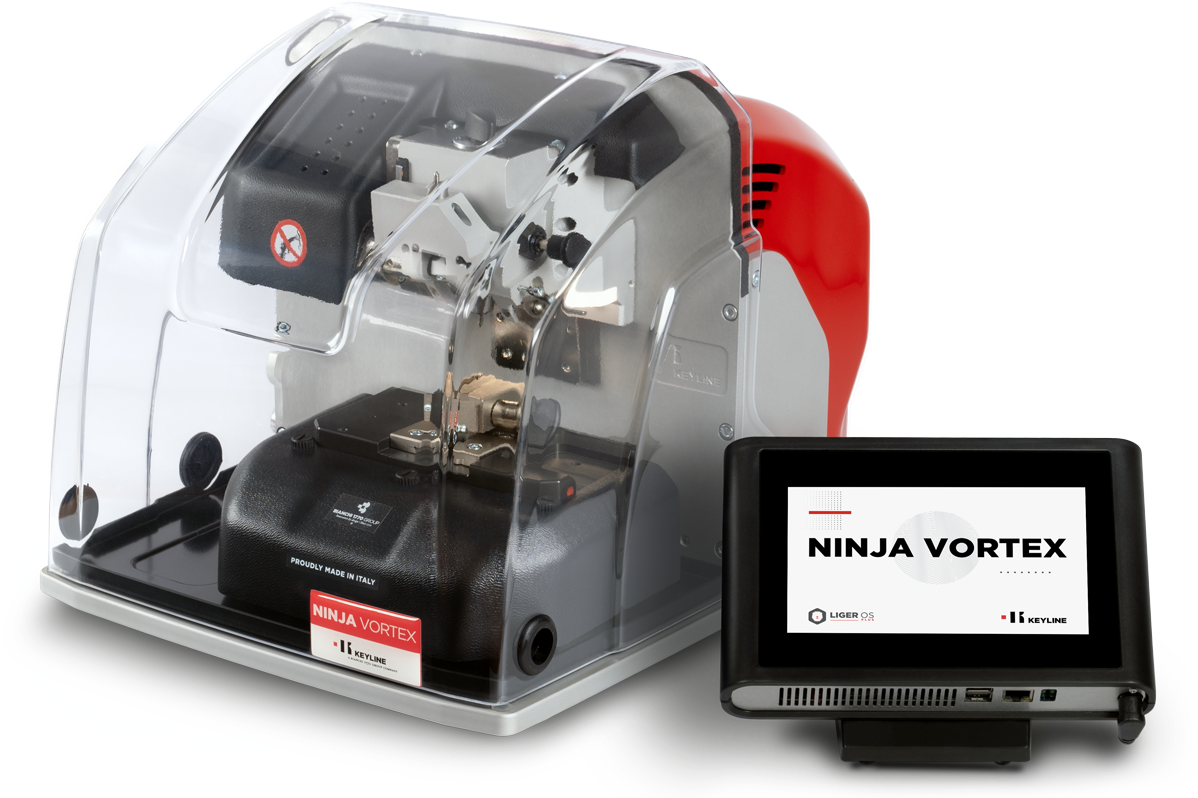

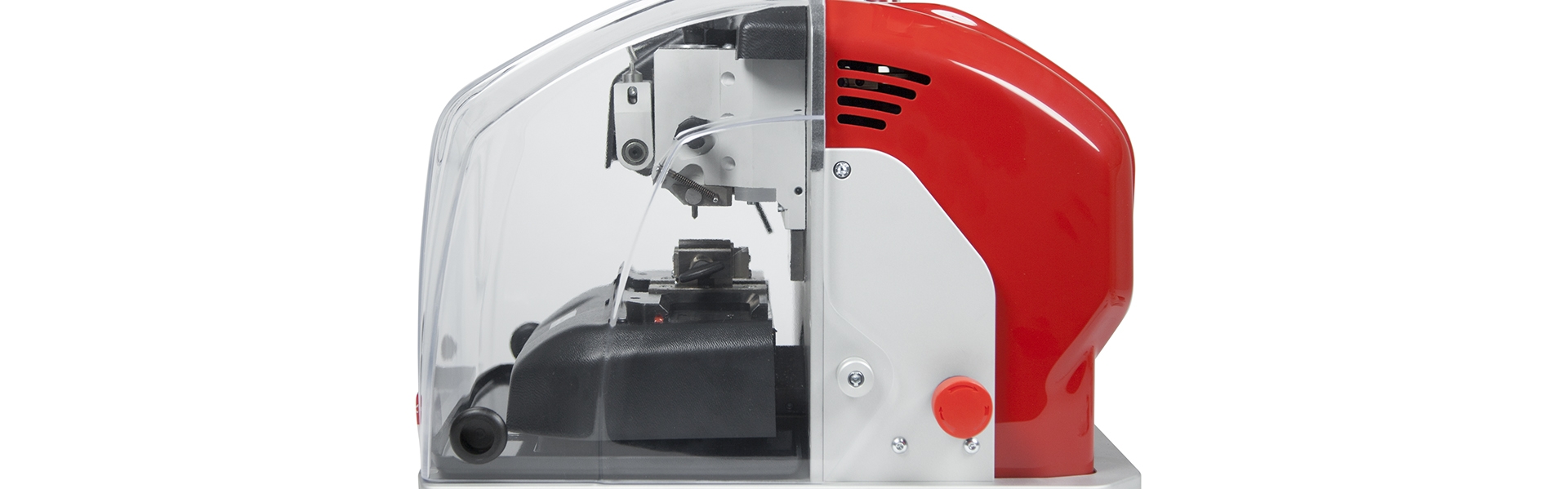

Ninja Vortex
Ninja Vortex works in decoding, coding and in the engraving of the heads of the high security, laser and dimple keys. Thanks to the technology that it has, based on the combination of three axes, united to a wide database, Ninja Vortex guarantees well-advanced performance in the segment of the key cutting machines for the speed of decoding and cutting.

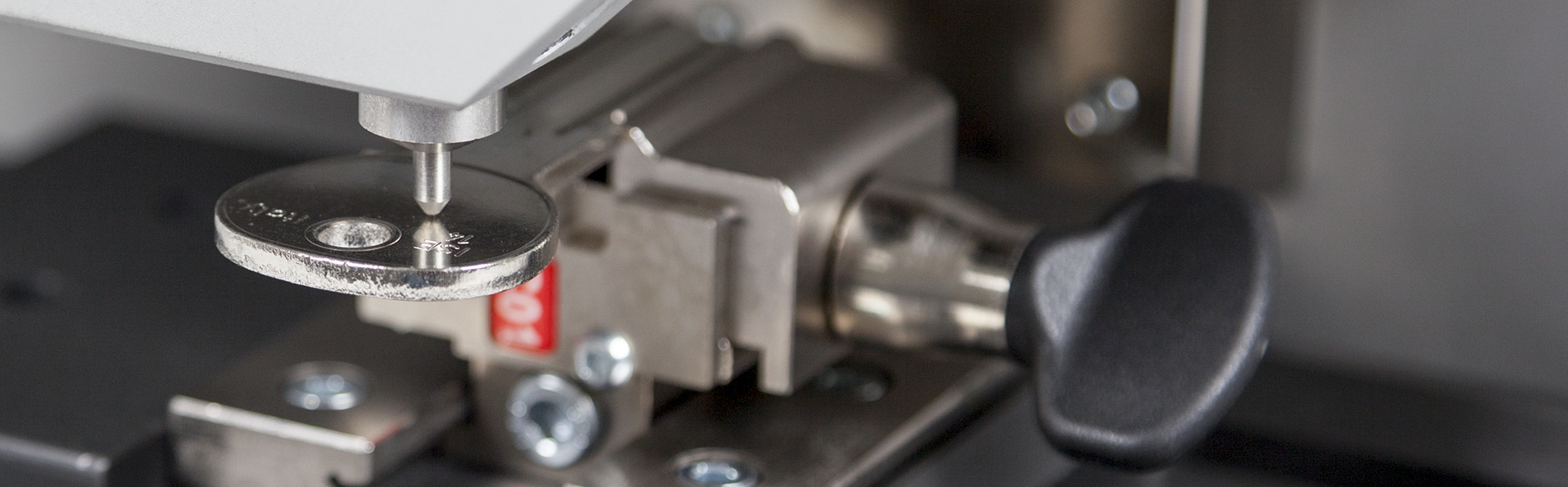

Furthermore, the engraving system allows the personalization of metal head keys through graphic etching without the need to remove the key from the clamp, making Ninja Vortex the only complete key cutting machine for high security dimple and laser keys, singularly or in series.
To facilitate the work of the professionals, Ninja Vortex includes complete equipment to cut the most widespread dimple keys that allows a secure installation, with automatic calibration and identification. Furthermore, clamps and cutters designed for special uses are available upon request.

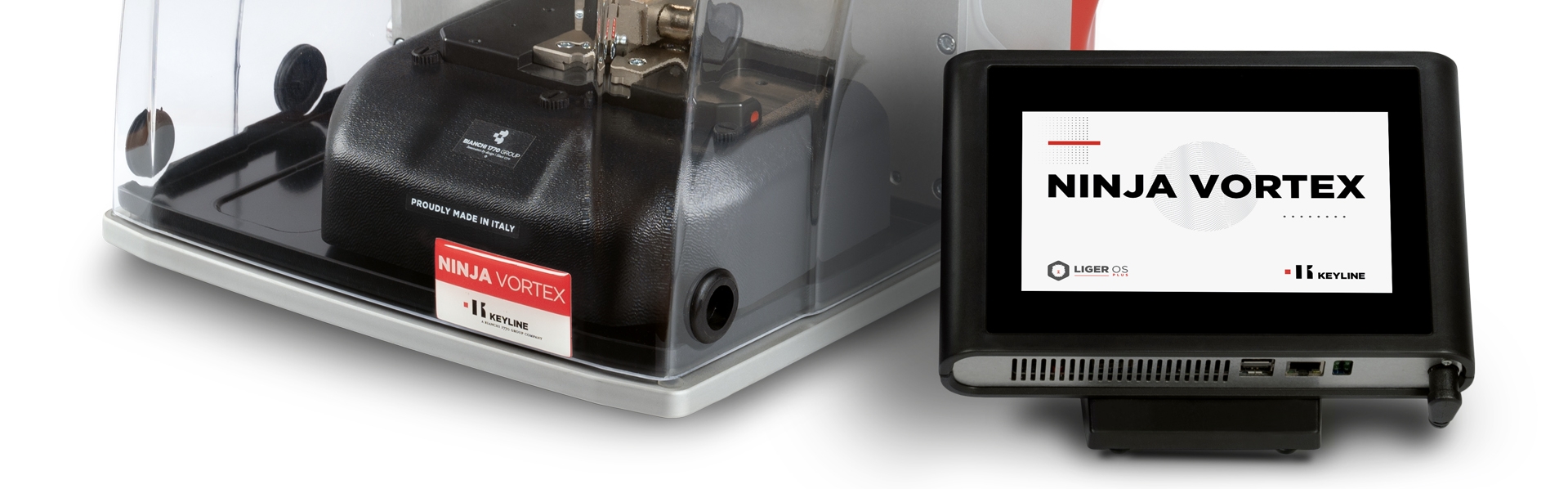

The Liger software developed by Keyline stands out for its capacity to process every cutting system and easily receive software updates. Complex operations are made extremely simple and intuitive thanks to the modern color interface, which is simple and easy to learn.
Ninja Vortex is standard equipped with a USB port, LAN ports and serial ports.
Available downloads
Power supply
90-130V 50-60Hz / 220-240V 50-60Hz
Absorption
250W (35W in stand-by)
External connections
2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
Dimensions
Width: 340mm / Depth: 415mm / Height: 300mm
Electronic equipment
Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high resolution axes control
Cutter
Equipment with the following Widia cutters: 1 pc. blade ø 4 mm, 90°cutting edge base 0,4mm (for dimple keys); 1 pc. blade ø 4 mm, cutting edge ø 2,5 mm (for car keys). Other models available upon request.
Lighting
LED - lighted cutting bay

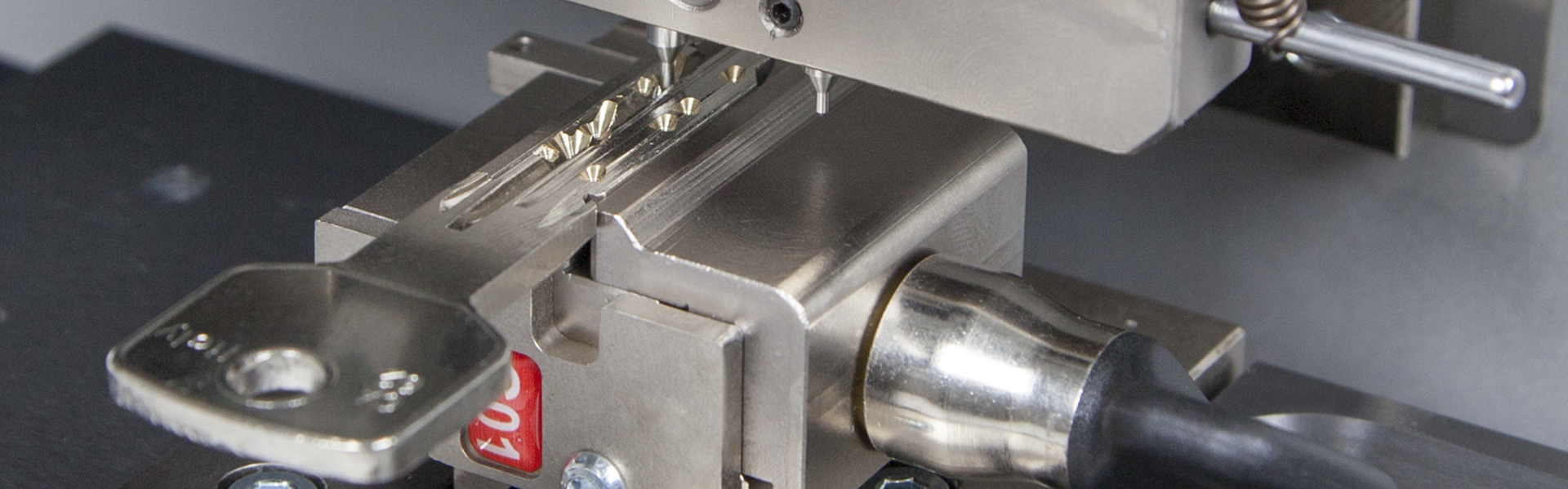

Clamps
Standard equipment includes 4 basic clamps: A01, A02, A03 for laser-type car keys; C01 for dimple keys. Other models available upon request.
Motor
DC electronic motor
Movements/axes
3 stepper motor-operated axes
Weight
19 Kg
Key reading systems
Electric contact
